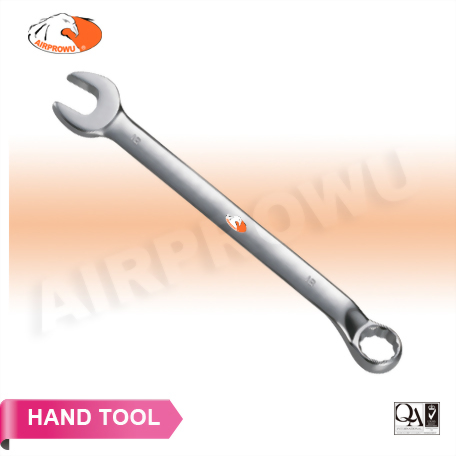

Offset Combination Wrench
Offset Combination Wrench
● Meets 40CRV, CE, ASIA
|

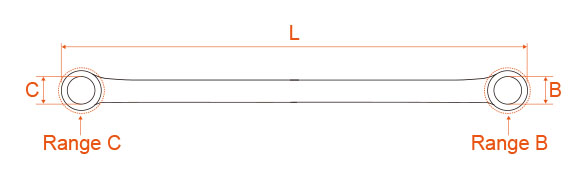

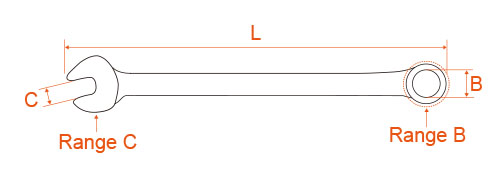

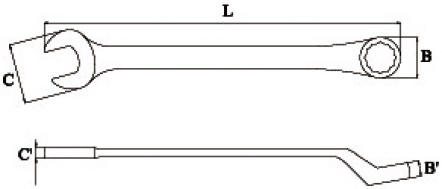

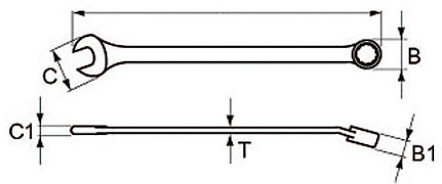

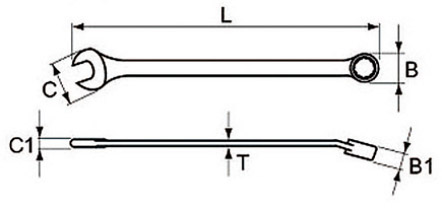

ITEM NO. |
SIZE |
L |
C |
B |
C' |
B' |
WT |
|
MM |
MM |
mm |
mm |
mm |
mm |
mm |
g |
|
W510106 |
6 |
90 |
13.4 |
9.5 |
4 |
4 |
18 |
|
W510107 |
7 |
95 |
14.9 |
10.7 |
4 |
4 |
20 |
|
W510108 |
8 |
105 |
17.5 |
12.5 |
4.3 |
4.6 |
22 |
|
W510109 |
9 |
115 |
20.6 |
13.5 |
4.7 |
5 |
28 |
|
W510110 |
10 |
125 |
21.5 |
14.7 |
5 |
5.2 |
35 |
|
W510111 |
11 |
140 |
23.2 |
16.6 |
5.4 |
5.5 |
45 |
|
W510112 |
12 |
155 |
25.5 |
18 |
5.6 |
5.7 |
60 |
|
W510113 |
13 |
165 |
28.2 |
19.2 |
5.9 |
6 |
71 |
|
W510114 |
14 |
180 |
29.1 |
20.2 |
6.2 |
6.2 |
87 |
|
W510115 |
15 |
190 |
33.4 |
21.4 |
6.4 |
6.4 |
105 |
|
W510116 |
16 |
205 |
34.6 |
23.5 |
6.7 |
6.7 |
115 |
|
W510117 |
17 |
215 |
37.8 |
25 |
6.9 |
7.2 |
145 |
|
W510118 |
18 |
230 |
37.1 |
25.7 |
7.2 |
7.3 |
168 |
|
W510119 |
19 |
240 |
40.2 |
27.7 |
7.4 |
8 |
206 |
|
W510120 |
20 |
255 |
42.5 |
28.5 |
8 |
8.3 |
240 |
|
W510121 |
21 |
265 |
45 |
32 |
8 |
8.5 |
258 |
|
W510122 |
22 |
280 |
47.4 |
33 |
8.2 |
8.7 |
286 |
|
W510123 |
23 |
290 |
49 |
35 |
8.7 |
9 |
305 |
|
W510124 |
24 |
305 |
51 |
36 |
9 |
9.7 |
326 |
|
W510125 |
25 |
330 |
55.6 |
38 |
9.2 |
10 |
470 |
|
W510126 |
26 |
330 |
55.6 |
38 |
9.2 |
10 |
470 |
|
W510127 |
27 |
345 |
58.5 |
40 |
9.5 |
10.4 |
548 |
|
W510128 |
28 |
355 |
60 |
42 |
9.5 |
10.8 |
572 |
|
W510129 |
29 |
380 |
63.8 |
44 |
10 |
11 |
643 |
|
W510130 |
30 |
380 |
63.8 |
44 |
11 |
11 |
643 |
|
W510132 |
32 |
405 |
68 |
46.5 |
11.5 |
11.6 |
750 |
