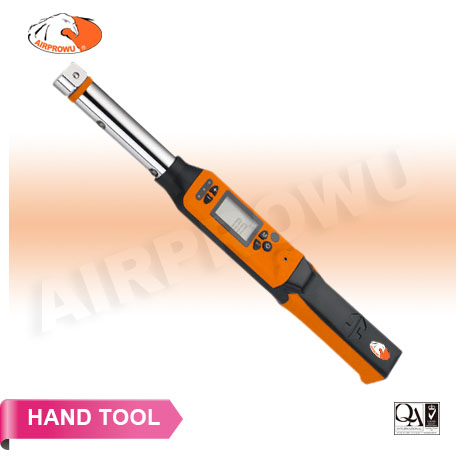

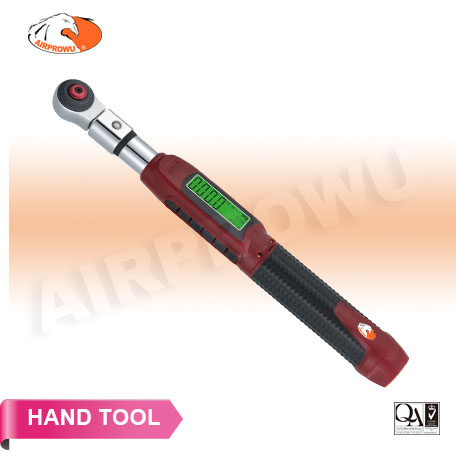

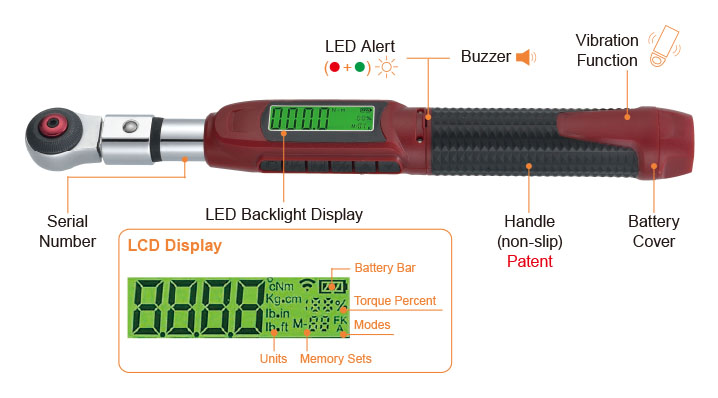

Mini Digital Interchangeable Torque Wrench
Mini Digital Interchangeable Torque Wrench
Mini Digital Interchangeable Torque Wrench
● Accuracy: CW: ±3% ; CCW: ±4%
● Units: Nm, Kg.cm, lb-in, lb-ft
● Operating Temperature: -10°C - 60°C
● Storage Temperature : -20°C - 70°C
● Humidity: Up to 90% non-condensing
● Battery: AAA x 2
● Battery Life(standard mode): 1 year
● Battery Life(continuous operation: 110 hrs.
● Drop Test: 1m
● Shaking Test: 10G
● Service life test: 10000 cycles
● Environmental test: PASS
● EMC test: PASS
|
ITEM NO. |
Square |
Insert |
Max. |
Setting Range |
Min. |
Max. Torque
Load/ |
Length |
Weight |
|
mm |
Nm |
Nm |
Nm |
Nm |
mm |
kg |
||
|
DTRL-SHTI06 |
1/4" |
9 x 12 |
6 |
0.3 - 6 |
0.01 |
88 / 62 |
255 |
0.27 |
|
DTRL-SHTI15 |
1/4" |
9 x 12 |
15 |
0.75 - 15 |
0.01 |
88 / 62 |
255 |
0.27 |
|
DTRL-SHTI25 |
1/4" |
9 x 12 |
25 |
1.25 - 25 |
0.01 |
88 / 62 |
255 |
0.27 |
|
DTRL-SHTI60 |
3/8" |
9 x 12 |
60 |
3 - 60 |
0.01 |
294 / 202 |
304 |
0.27 |
