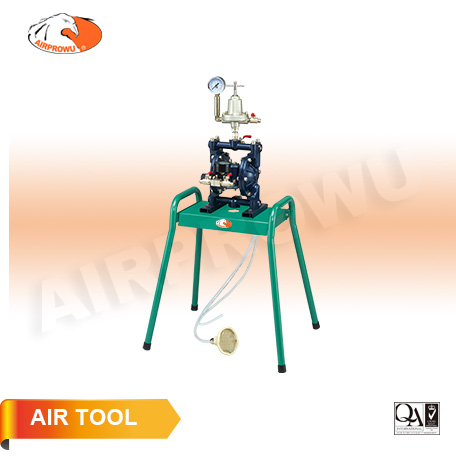

Double Diaphragm Pump (w/ Low Pressure Fluid Regulator)
modèle :
DP-3R
DP-3R NEW
Double Diaphragm Pump
(w/ Low Pressure Fluid Regulator)
● Dimension: 495 x 410 x 870mm
● Carton: 525 x 260 x 490mm
● N.W/ G.W/ Cuft: 9.0/ 10.3 KG/ 2.3'
● Certificates: ISO 9001: 2008 /2006 /42 /CE
Double Diaphragm Pump
(w/ Low Pressure Fluid Regulator)
● Dimension: 495 x 410 x 870mm
● Carton: 525 x 260 x 490mm
● N.W/ G.W/ Cuft: 9.0/ 10.3 KG/ 2.3'
● Certificates: ISO 9001: 2008 /2006 /42 /CE
DP-3R NEW
Double Diaphragm Pump
(w/ Low Pressure Fluid Regulator)
● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
7.5 L/min (1.0 kg/cm2) 10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1-5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
Double Diaphragm Pump
(w/ Low Pressure Fluid Regulator)
● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
7.5 L/min (1.0 kg/cm2) 10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1-5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
