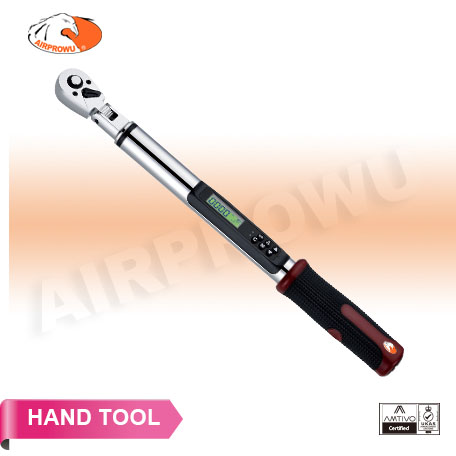

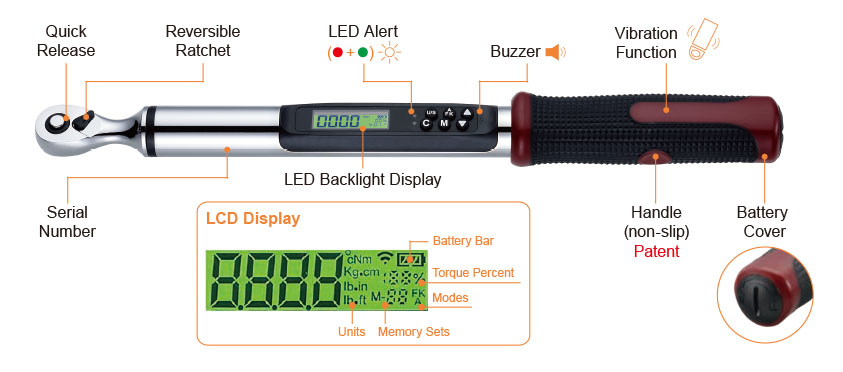

Digital Angle Torque Wrench
Digital Angle Torque Wrench
● Accuracy: CW: ±1.5% ; CCW: ±2.5%
● Angle Accuracy: ±2°
● Min. Angle: 0.1° ; Max. Angle: 720° ; Setting Range: 0.1° - 720°
● Units: Nm, Kg.cm, lb-in, lb-ft
● Operating Temperature: -10°C - 60°C
● Storage Temperature: -20°C - 70°C
● Humidity: Up to 90% non-condensing
● Battery: AA x 2
● Battery Life(standard mode): 1 year
● Battery Life(continuous operation): 110 hrs.
● Drop Test: 1m
● Shaking Test: 10G
● Service life test: 10000 cycles
● Environmental test: PASS
● EMC test: PASS
|
ITEM NO. |
Square |
Teeth |
Max. |
Setting Range |
Min. |
Max. Torque
Load/ |
Length |
Weight |
|
Nm |
Nm |
Nm / Degrees |
Nm |
mm |
g |
|||
|
DTRL-SHTA30-1 |
1/4" |
72 |
30 |
1.5 - 30 |
0.01 / 0.1° |
88 / 62 |
382 |
770±50 |
|
DTRL-SHTA30-2 |
3/8" |
72 |
30 |
1.5 - 30 |
0.01 / 0.1° |
294 / 202 |
382 |
795±50 |
|
DTRL-SHTA60-2 |
3/8" |
72 |
60 |
3.0 - 60 |
0.01 / 0.1° |
294 / 202 |
382 |
795±50 |
|
DTRL-SHTA135-2 |
3/8" |
72 |
135 |
6.8 - 135 |
0.1 / 0.1° |
294 / 202 |
408 |
898±50 |
|
DTRL-SHTA135-3 |
1/2" |
72 |
135 |
6.8 - 135 |
0.1 / 0.1° |
735 / 512 |
426 |
1114±50 |
|
DTRL-SHTA200-3 |
1/2" |
72 |
200 |
10 - 200 |
0.1 / 0.1° |
735 / 512 |
536 |
1272±50 |
|
DTRL-SHTA340-3 |
1/2" |
72 |
340 |
17 - 340 |
0.1 / 0.1° |
735 / 512 |
638 |
1470±50 |
|
DTRL-SHTA400-3 |
1/2" |
72 |
400 |
20 - 400 |
0.1 / 0.1° |
735 / 512 |
638 |
1470±50 |
|
DTRL-SHTA600-4 |
3/4" |
24 |
600 |
60 - 600 |
0.1 / 0.1° |
1836 / 1412 |
923 |
3902±50 |
|
DTRL-SHTA600-5 |
1" |
24 |
600 |
60 - 600 |
0.1 / 0.1° |
3270 / 2515 |
923 |
3902±50 |
|
DTRL-SHTA800-4 |
3/4" |
24 |
800 |
80 - 800 |
0.1 / 0.1° |
1836 / 1412 |
1225 |
4695±50 |
|
DTRL-SHTA800-5 |
1" |
24 |
800 |
80 - 800 |
0.1 / 0.1° |
3270 / 2515 |
1225 |
5040±50 |
|
DTRL-SHTA1000-4 |
3/4" |
24 |
1000 |
100 - 1000 |
1 / 0.1° |
1836 / 1412 |
1225 |
4695±50 |
|
DTRL-SHTA1000-5 |
1" |
24 |
1000 |
100 - 1000 |
1 / 0.1° |
3270 / 2515 |
1225 |
5040±50 |
