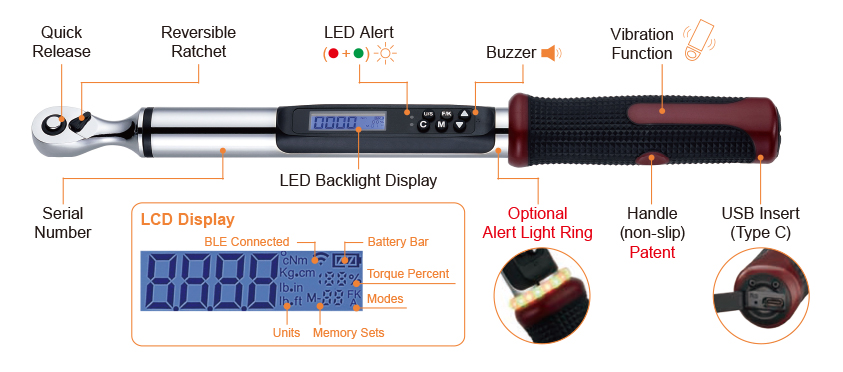

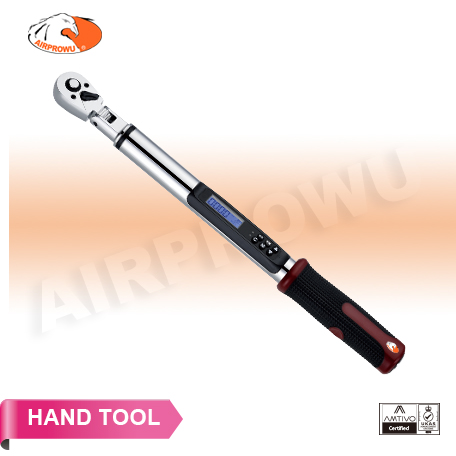

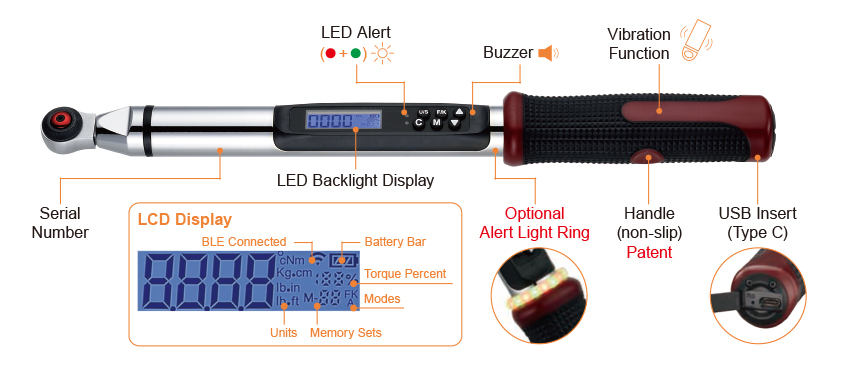

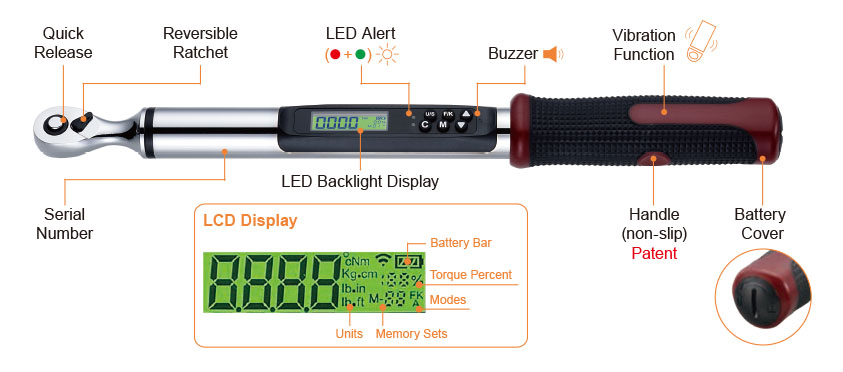

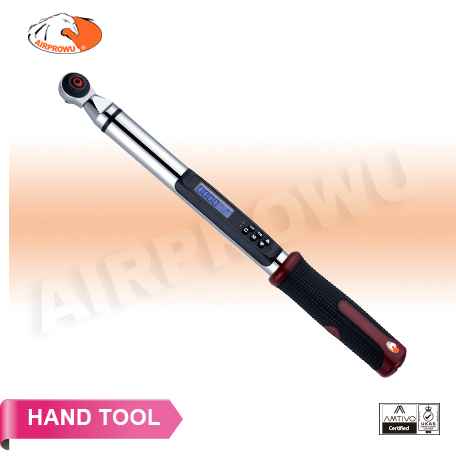

Bluetooth Digital Flexible Torque Wrench
Bluetooth Digital Flexible Torque Wrench
● Accuracy: CW: ±2% ; CCW: ±3%
● Units: Nm, Kg.cm, lb-in, lb-ft
● Operating Temperature: -10°C - 60°C
● Storage Temperature: -20°C - 70°C
● Humidity: Up to 90% non-condensing
● Battery Type: 16650
● Type: USB Charge (Type-C)
● Battery life(Fully charged used time): 8 - 10 hrs
● Battery life(Recharge time): 90 - 120 mins
● Drop Test: 1m
● Shaking Test: 10G
● Service life test: 10000 cycles
● Environmental test: PASS
● EMC test: PASS
● FCC ID: 2BCGY-SH05BT
● Wireless Interface: Bluetooth 4.2 2402 - 2480 MHz
● Optional Accessories: Alert Light Ring
|
ITEM NO. |
Square |
Teeth |
Max. |
Setting Range |
Min. |
Max. Torque
Load/ |
Length |
Weight |
|
Nm |
Nm |
Nm |
Nm |
mm |
g |
|||
|
DTRL-SHBTF30-1 |
1/4" |
72 |
30 |
3 - 30 |
0.01 |
88 / 62 |
398 |
770±50 |
|
DTRL-SHBTF135-2 |
3/8" |
72 |
135 |
13.5 - 135 |
0.1 |
294 / 202 |
430 |
924±50 |
|
DTRL-SHBTF200-3 |
1/2" |
72 |
200 |
20 - 200 |
0.1 |
735 / 512 |
556 |
1336±50 |
|
DTRL-SHBTF340-3 |
1/2" |
72 |
340 |
34 - 340 |
0.1 |
735 / 512 |
654 |
1476±50 |
|
DTRL-SHBTF400-3 |
1/2" |
72 |
400 |
40 - 400 |
0.1 |
735 / 512 |
654 |
1476±50 |
