3/4" Air Angle Impact Wrench

modèle : SA23120T

quantité :

SA23120T 3/4"
Air Angle Impact Wrench

● Twin Hammer

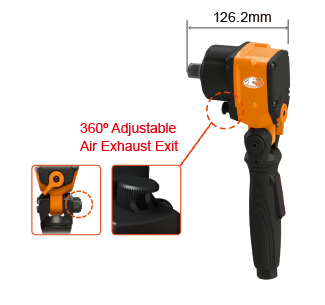

● 360º Swivel Exhaust
● Double Air Intake System
● Working Torque: 664 ft-lb (900 Nm)
● Bolt Capacity: 1" (26mm)

SA23120T 3/4"
Air Angle Impact Wrench

Model No.

Square
Drive

Max
Torque

Free
Speed

Air
Cons.

Net
Weight

Overall
Length

Air
Inlet

Air
Pressure

Hose
Size

Sound
Pressure

Vibration
Level

四方頭

最大扭力

無負載轉速

耗氣量

重量

長度

進氣口

空氣壓力

氣管

噪音值

振動值

Inch

ft-lb

N-m

R.P.M

CFM

L/min

Inch

NPT(PT)

psi

bar

Inch

dBA

m/s2

SA23120T

3/4

738

1000

7,500

4.5

127

5.07

2.3

4.97

126

3/8"

6.2

3/8

4.9

SA23120T 3/4"
Air Angle Impact Wrench

● Patented Technology "Double Air Intake"

Reshape air motor construction to Double-Air-Intake and Double-Air-Exhaust,
largely increase air intake and rapidly exhaust after work. Significantly improve rotor
efficient to high peak.

● Speed Controllable Trigger
Ensure the Anvil working steadily, prevents bolts from damage.

● Aluminum Housing
Aluminum housing gives hammer kit a very rugged & robust protection.

● Ergonomic Handle
Plastic & ergonomic design for lightweight, anti-slip, better grip and no sweat on handle operation.

● Low Sound Level
Hindden muffler can greatly decrease working noise.

● Angle Regulator
The angle of hammer head can be adjusted or fixed by the regulator as required.

SA23120T 3/4"
Air Angle Impact Wrench

● Mainly aim for working in confined space where with obstacles, like gearbox, engine,
transmission, farming cultivator and so on.
