1" Two-Speed Straight Handle Pneumatic Torque Wrench
● 510~3650 Nm
modèle :
SA24134-36
SA24134-36 1"
Two-Speed Straight Handle Pneumatic Torque Wrench
● Engineering plastic handle, light weight, low noise design
● Preset the torque through the air pressure to stop the set torque value
● 0.6 MPa compressed air, the maximum power consumption of 600 L/min
● More suitable for space-constrained occasions, using silent motor,
the accuracy is ± 5%
● High/low speed mechanical shifting to meet different working conditions
● High-intensity overall reaction force arm, not easy to break, 360 degree adjustment
● New ergonomic design handle that can be rotated to improve operation convenience
and comfort
Two-Speed Straight Handle Pneumatic Torque Wrench
● Engineering plastic handle, light weight, low noise design
● Preset the torque through the air pressure to stop the set torque value
● 0.6 MPa compressed air, the maximum power consumption of 600 L/min
● More suitable for space-constrained occasions, using silent motor,
the accuracy is ± 5%
● High/low speed mechanical shifting to meet different working conditions
● High-intensity overall reaction force arm, not easy to break, 360 degree adjustment
● New ergonomic design handle that can be rotated to improve operation convenience
and comfort
SA24134-36 1"
Two-Speed Straight Handle Pneumatic Torque Wrench
Contents
● 1PC Pneumatic Torque Wrench
● 1PC Reaction Arm Ring
● 1PC Metal Box
Two-Speed Straight Handle Pneumatic Torque Wrench
Contents
● 1PC Pneumatic Torque Wrench
● 1PC Reaction Arm Ring
● 1PC Metal Box
|

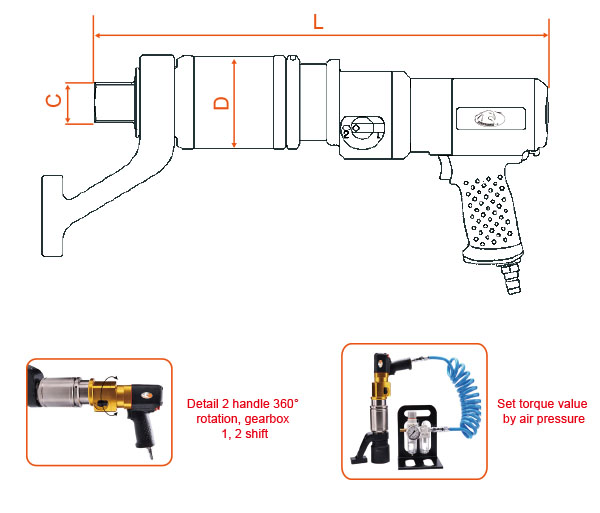

Model No. |
Torque |
Square |
Outer |
Length |
No-load |
Weight |
Packing |
|
Nm |
C (Inch) |
D (mm) |
L (mm) |
R.P.M |
kg |
Set/ Ctn/ G.W/ N.W/ Cuft (kgs) |
|
|
SA24134-36 |
510-3650 |
1 |
88 |
415 |
7 |
8.3 |
1/Ctn/ 23.5 / 22.5/ 1.56' |
