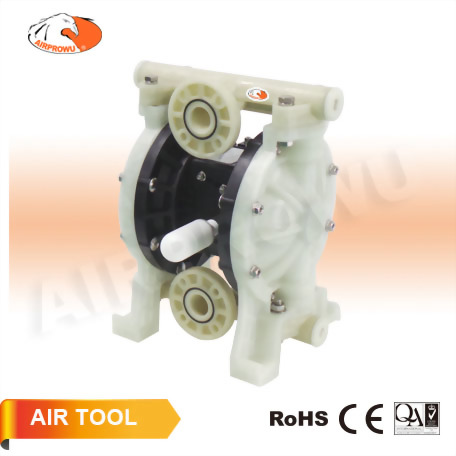

VAP-PP40F
1" Double Diaphragm Pump
(Plastic Pump)


● Liquid Inlet & Outlet: 1" NPT
● Air Inlet & Outlet: 3/8" & 1/2" NPT
● Material: PTFE
● Wetted & Center Body: PPG
● Pipe Type: Center Flange
● Ball Cover: PP
● Ball: PTFE
● Ball Seat: PP
● Certificates: CE/ Ex II 2 GD c IIB T4~T5

VAP-PP40F
1" Double Diaphragm Pump
(Plastic Pump)


● Dimension: (L)32 x (W)26 x (H)41 cm
● Min. Pressure: 0.5 Bar (kgf/cm2); 7.25 psi
● Max. Pressure: 7 Bar (kgf/cm2); 101.5 psi
● Working Pressure Advised: 1.5~5 Bar (kgf/cm2); 21.75~72.5 psi
● Air Cons.: 1080 L/min (38.12 SCFM)
● Quantity/ Cycle: 450 ml
● Solid Limit: Φ3.0 mm
● Inlet Lift (Deep): 6 m-Wet / 3.7 m-Dry
● Max Flow Rate: 44.32 GPM (168 LPM)
● Weight: 7.3 kg
