1/2" Ultra Compact Air Angle Impact Wrench
1/2" Ultra Compact Air Angle Impact Wrench
● 360° Adjust Handle Exhaust
● Jumbo Hammer
● Height: 265mm (10.43")
● Max. Torque: 450 ft-lb (610 Nm)
1/2" Ultra Compact Air Angle Impact Wrench
|
Model No. |
Square |
Air |
Max |
Free |
Air Inlet |
Air |
Hose |
Overall |
Net |
||||||
|
四方頭 |
耗氣量 |
最大扭力 |
無負載轉速 |
進氣口 |
空氣壓力 |
氣管 |
長度 |
重量 |
|||||||
|
Inch |
CFM |
L/min |
ft-lb |
N-m |
R.P.M |
NPT(PT) |
psi |
bar |
Inch |
mm |
Inch |
mm |
lb |
kg |
|
|
SA22145PR |
1/2 |
4.2 |
119 |
450 |
610 |
9,000 |
1/4"-18 |
90 |
6.2 |
3/8 |
10 |
3.46 |
88 |
2.78 |
1.26 |

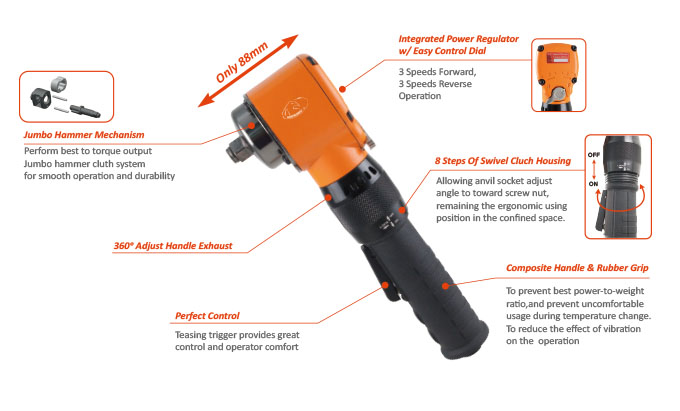

1/2" Ultra Compact Air Angle Impact Wrench
● Designed for difficult work in confined spaces, being so compact with the extend long handle to
reach for work in tight spaces, where a standard impact wrench would be impossible to use.
● Ideal for agriculture blades, transmission, engine, and brake work.
● Direct drive jumbo hammer mechanism, eliminate the easy worn out umbrella
gear torque-transmission-loss problem.
● Ultra compact and light weight 1.26kg impact wrenches offers an excellent power-to-weight ratios.
